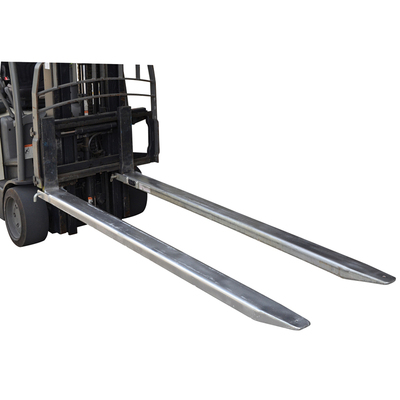

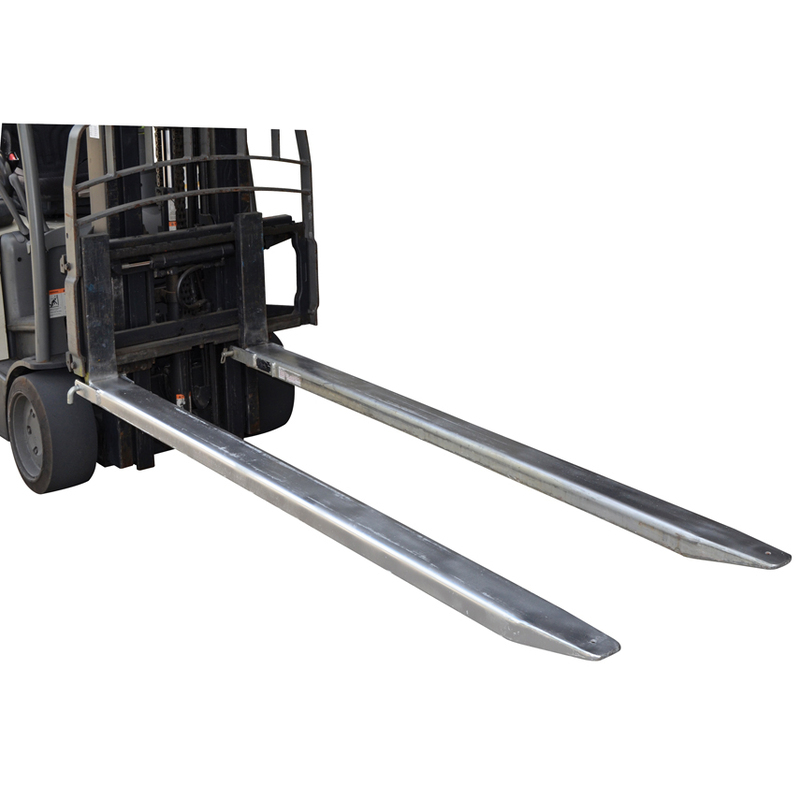

Fork Extension Slippers

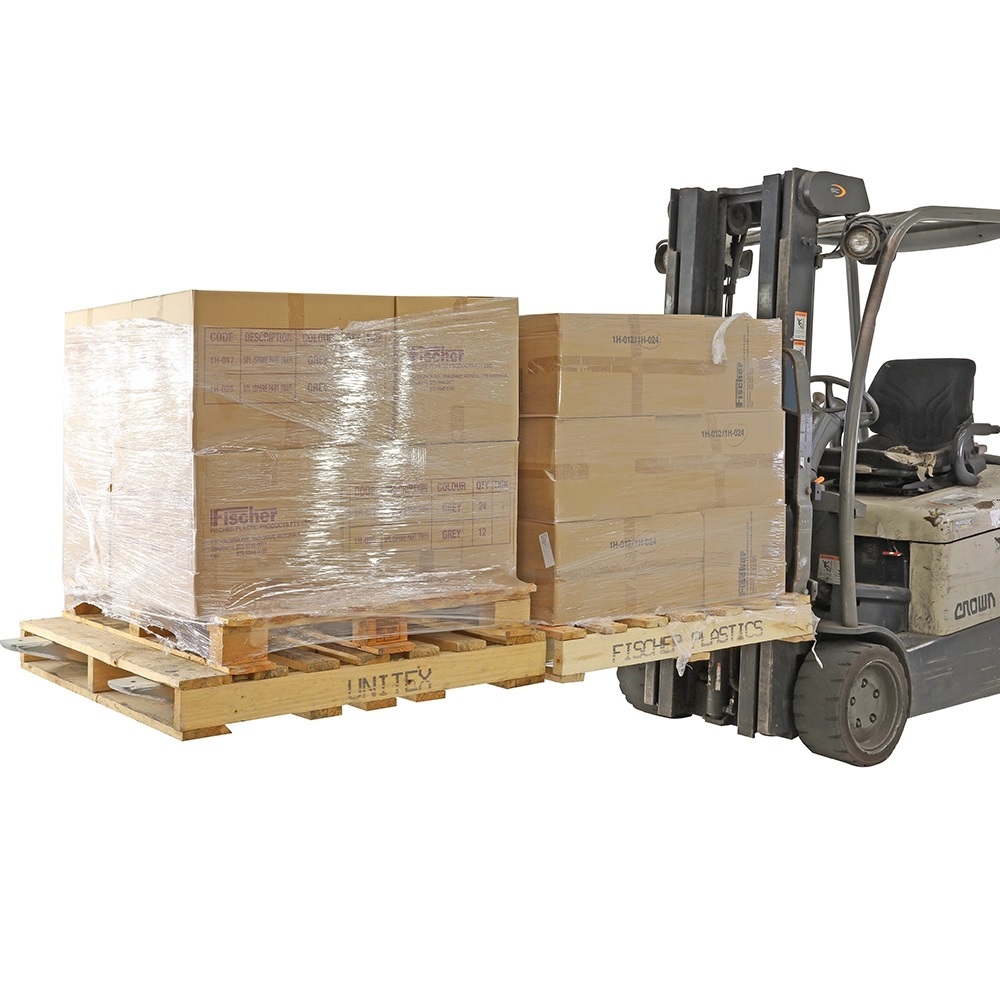

Fork slippers extend the versatility of your lift truck
Forklift Extension Slippers are made from fully fabricated plate sections and have a hot dip galvanised finish.
Supplied with tine pins to secure slippers to forklift.
The safe working load (SWL) is measured per pair at 600mm load centre
Slippers conform to AS2359.15
In accordance with AS2359.15 Forklift Slippers for general use should be no longer than 167% of the supporting forklift tyne length. If the slippers are longer than this, then their use shall be restricted to their specified application.
|Code||Detail||SWL||Length||Internal Tine Size (W x H)||External Tine Size (W x H)||HCG*||Weight/Pair|
|MHE2405||Fork Extension Slipper - 1800mm||4500Kg||1800mm||140mm x 55mm||160mm x 65mm||845mm||66Kg|
|MHE2406||Fork Extension Slipper - 2400mm||4500Kg||2400mm||140mm x 55mm||160mm x 65mm||1130mm||88Kg|
|MHE2407||Fork Extension Slipper - 1800mm||8000Kg||1800mm||160mm x 80mm||195mm x 94mm||830mm||133Kg|
|MHE2408||Fork Extension Slipper - 2400mm||8000Kg||2400mm||160mm x 80mm||195mm x 94mm||1135mm||177Kg|
|MHE2409||Fork Extension Slipper - 3000mm||8000Kg||3000mm||160mm x 80mm||195mm x 94mm||1435mm||221Kg|
*Distance from carriage face to attachment’s centre of gravity (HCG).
