Heavy Duty Manual Fork Stackers
SKU: MH_2070
Manual fork stackers are of a heavy duty construction and an economical alternative to forklifts.

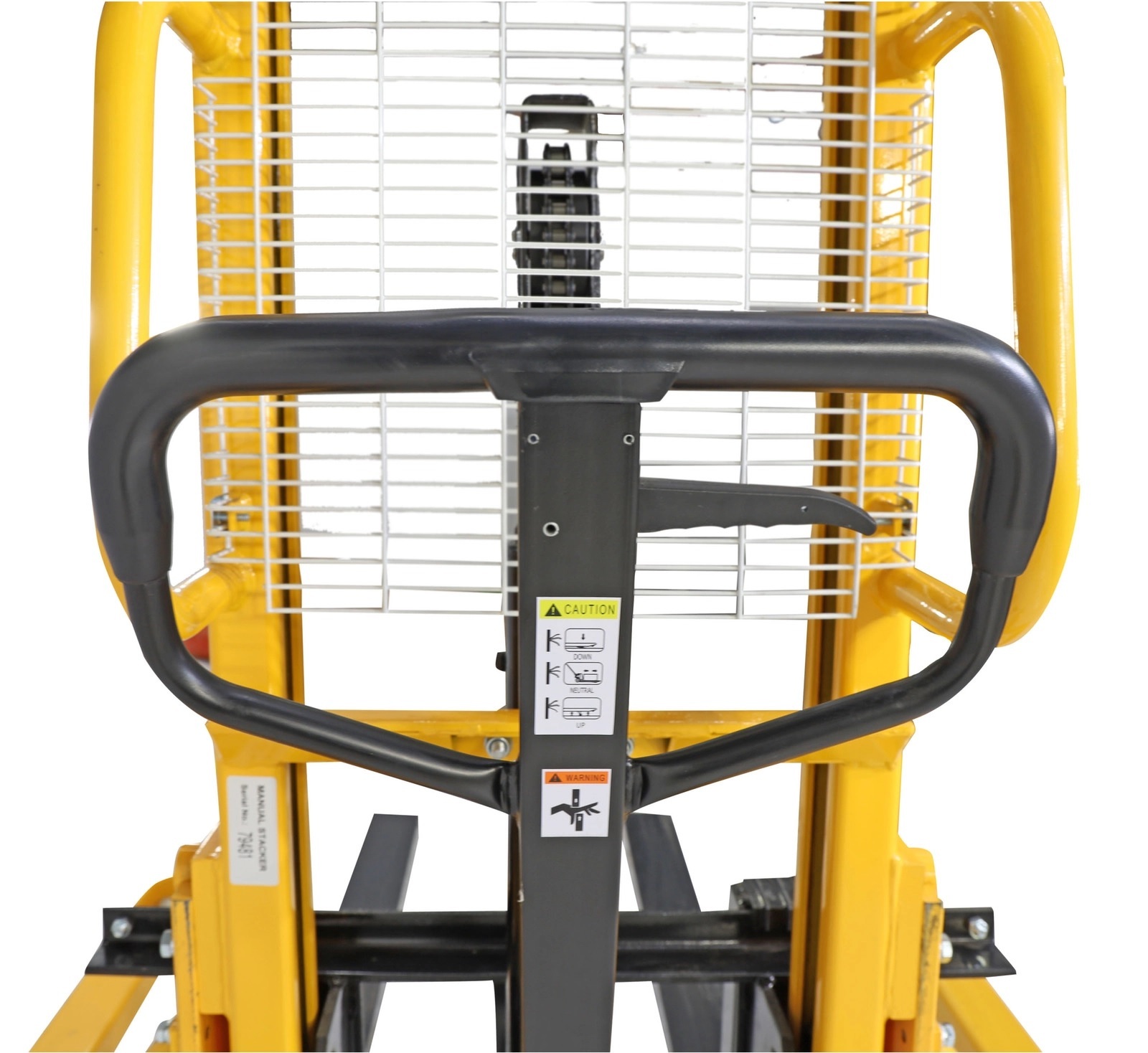

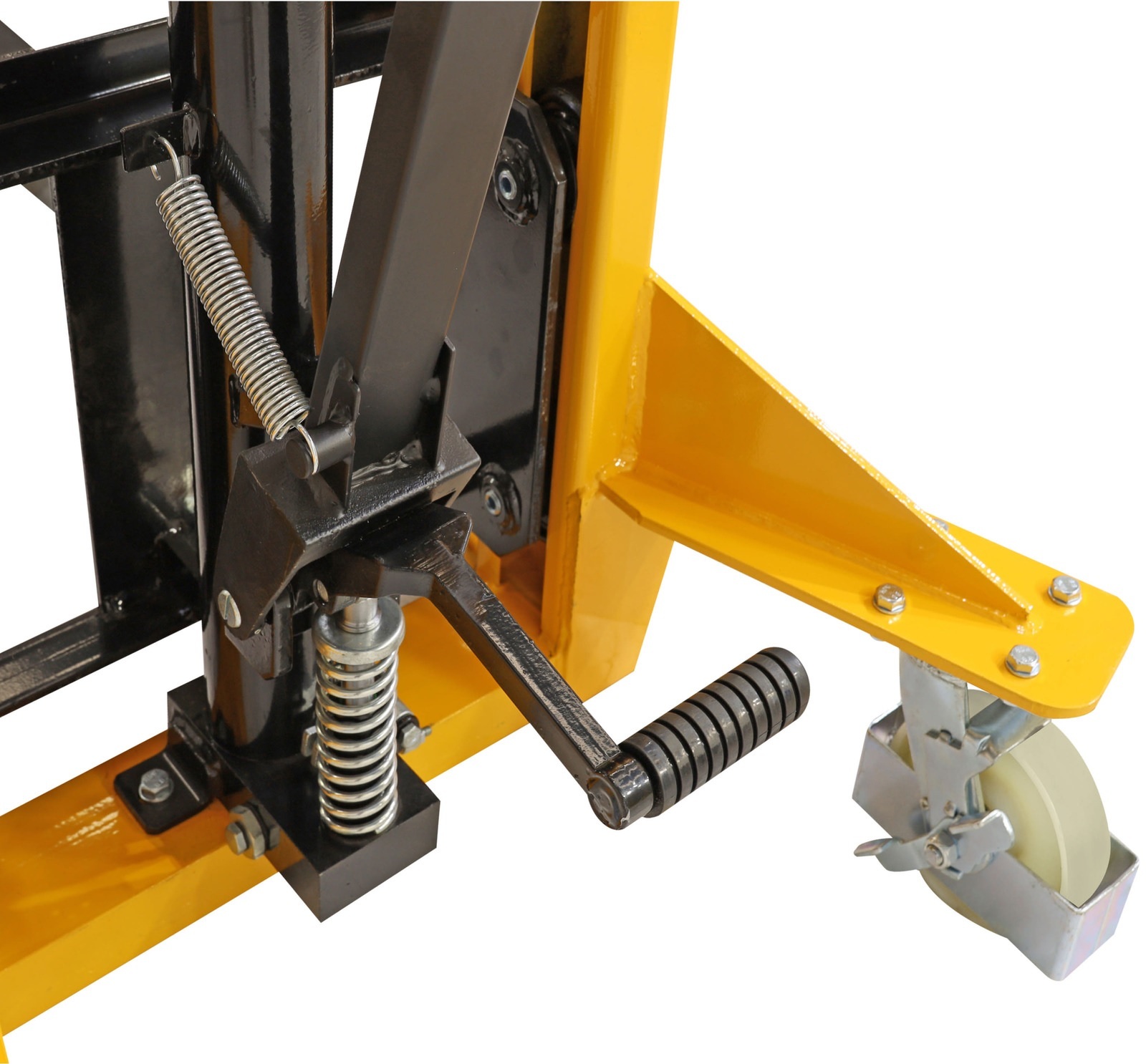

Manual hydraulic lift via pallet truck style handle or foot pedal.

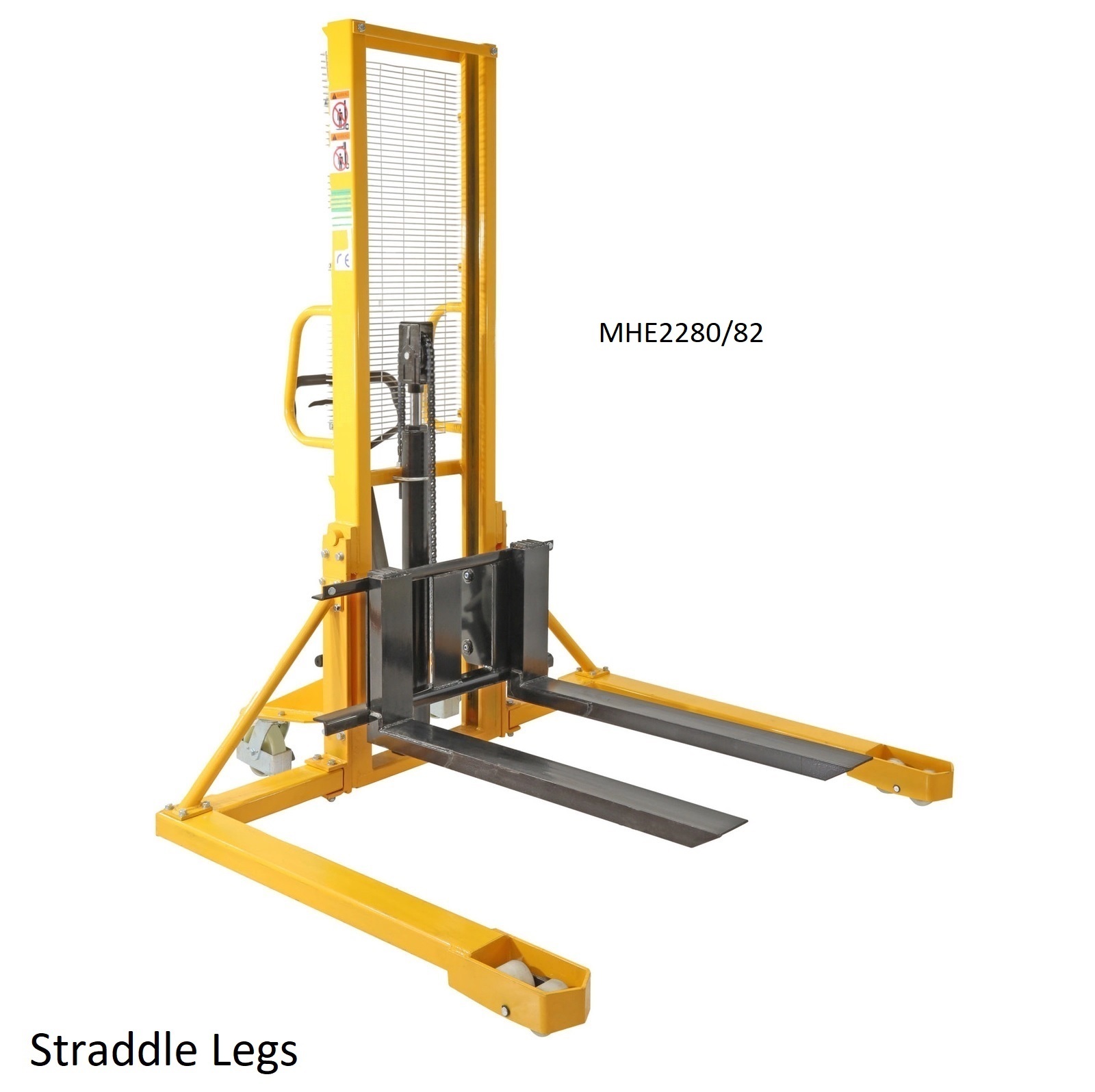

Straddle leg model for use with standard 1170mm Australian pallets.

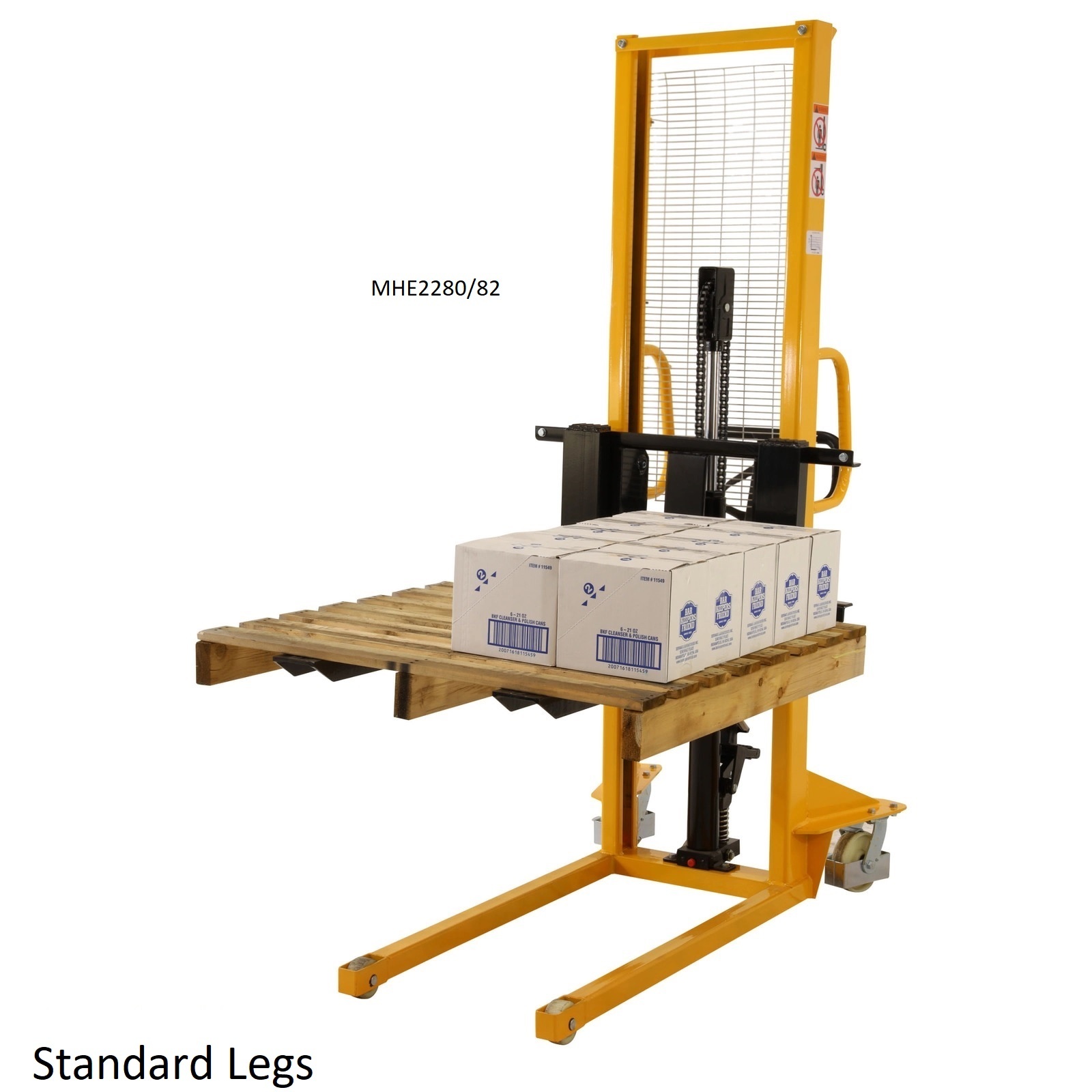

Standard leg model for use on Euro pallets and or small skids.
Lockable wheels are standard on all models.

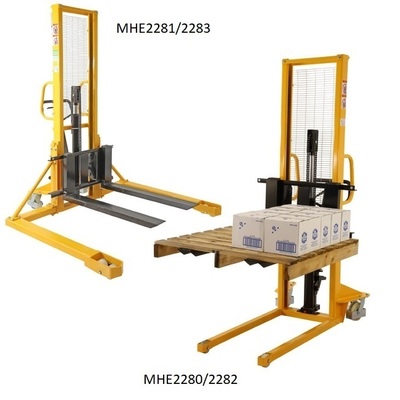

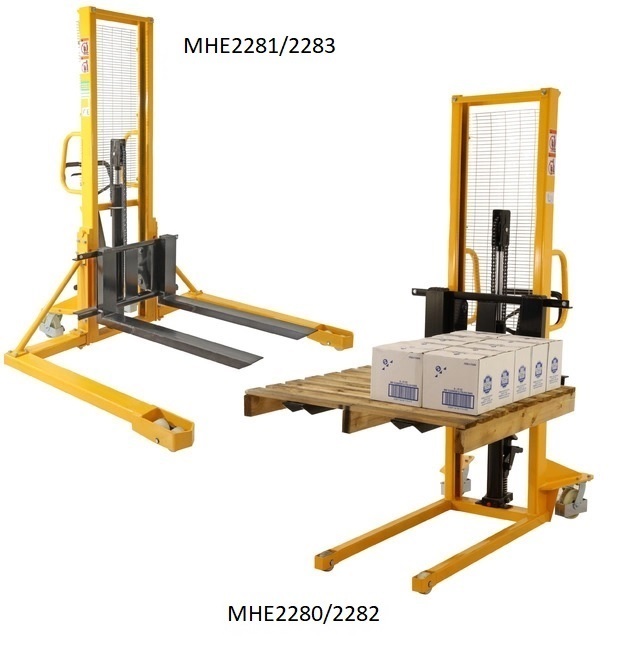

Code | Description | Lift Capacity | Overall Dimensions (LxWxD) | Lifting Range | Rear Castor Diameter | Front Caster Diameter | Unit Weight |
---|---|---|---|---|---|---|---|
MHE2280 | Standard Leg Stacker | 500Kg | 1640mm x 805mm x 2000mm | 90mm-1600mm | 150mm | 80mm | 160Kg |
MHE2281 | Straddle Leg Stacker | 500Kg | 1600mm x 1500mm x 2000mm | 70mm-1600mm | 150mm | 80mm | 225Kg |
MHE2282 | Standard Leg Stacker | 1000Kg | 1640mm x 1000mm x 2085mm | 90mm-1600mm | 150mm | 80mm | 250Kg |
MHE2283 | Straddle Leg Stacker | 1000Kg | 1560mm x 1450mm x 2050mm | 70mm-1600mm | 150mm | 80mm | 295Kg |
