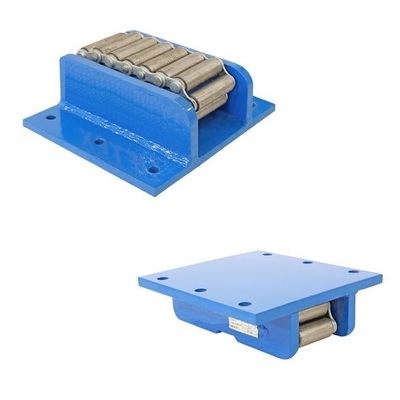

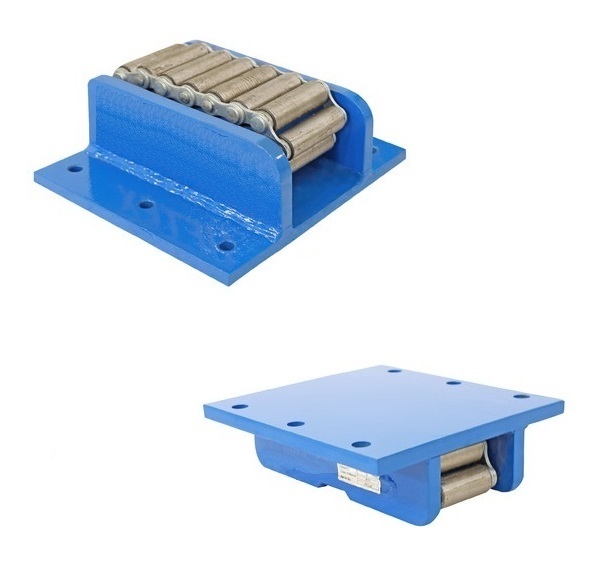

Equipment Roller Skates
SKU: MH_3815
Ideal for linear motion, repetitive movement or use as a built in component in equipment.
Fixed hole pattern for bolt mounting.
The rollers can be used in an up, down or sideways position.
Please Note - Sizes are approximate only and subject to change without notice

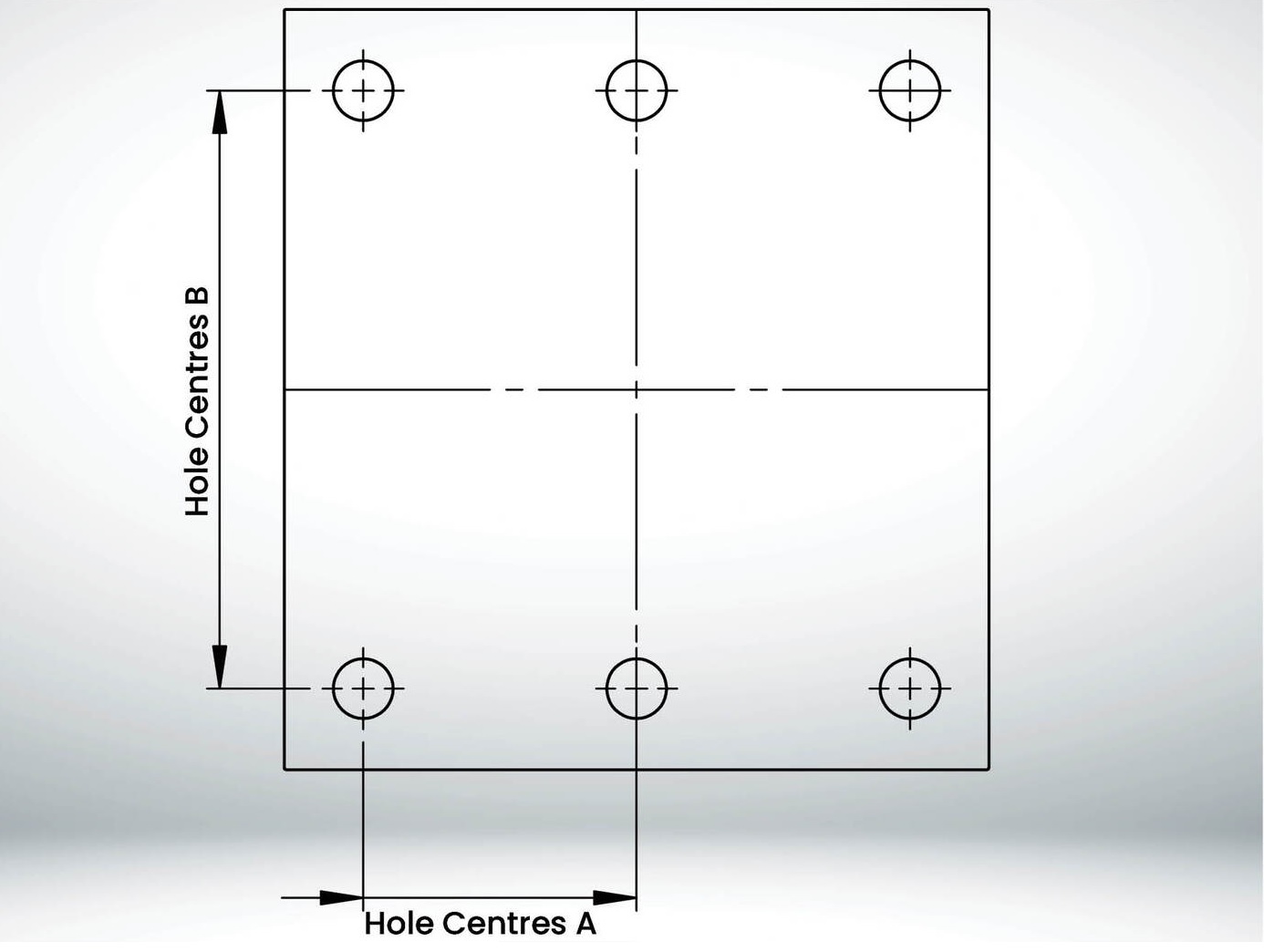

Code | Details | Load Capacity | Hole Centres A | Hole Centres B | Overall Dimensions (LxWxH) | Unit Weight |
---|---|---|---|---|---|---|
MHE1350 | Roller Skate - 750Kg | 750Kg | 64mm | 140mm | 165mm x 178mm x 80mm | 5 kg |
MHE1355 | Roller Skate - 2500Kg | 2500Kg | 64mm | 140mm | 165mm x 180mm x 90mm | 10 kg |
MHE1360 | Roller Skate - 5000Kg | 5000Kg | 83mm | 171mm | 203mm x 203mm x 80mm | 15 Kg |
MHE1365 | Roller Skate - 15000Kg | 15000Kg | 94mm | 216mm | 270mm x 254mm x 100mm | 21 Kg |
(MH_3815)
SKU | MH_3815 |
Brand | Liftex |
