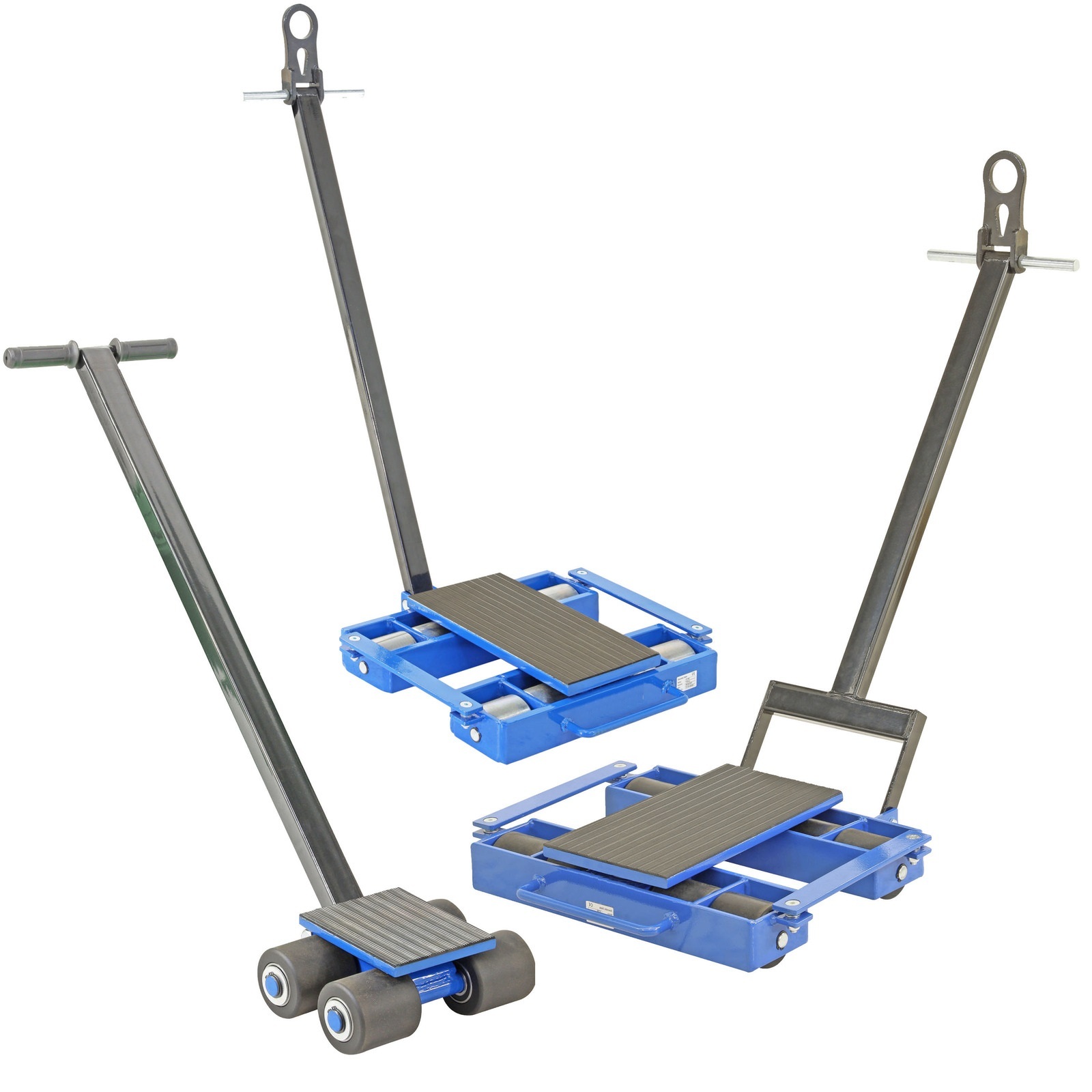

Heavy Duty Steerable Load Skates

Steerable load skates suited for the movement of heavy objects up to 12,000 Kg.

Rubber padded platform swivels on a thrust bearing allowing easy cornering.

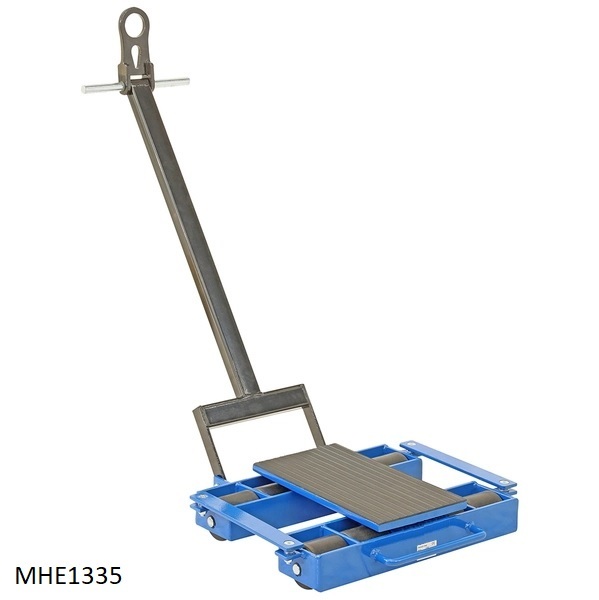

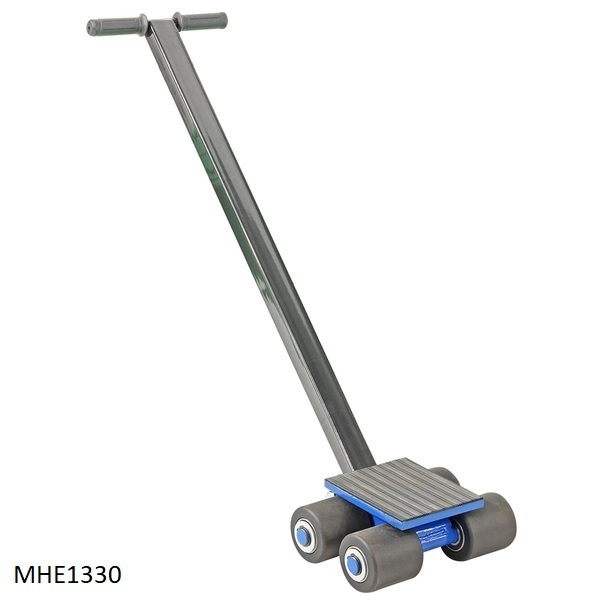

MHE1330 & MHE1335 have 85mm nylon wheels.

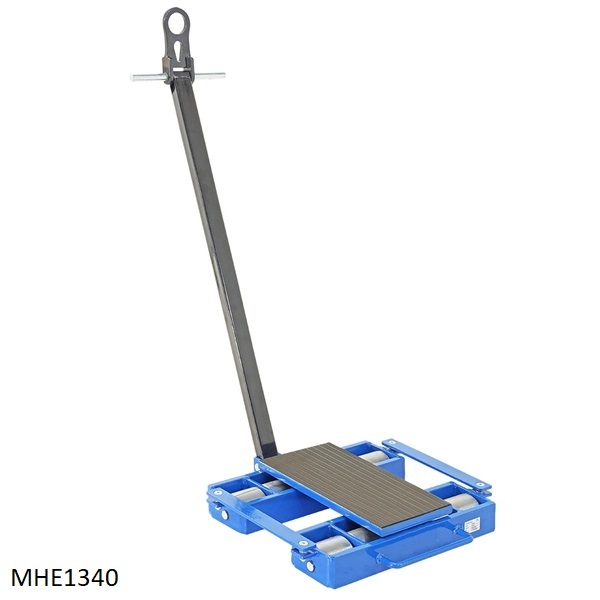

MHE1340 has 80mm steel roller wheels.

1 metre long drawbar for steering.

Quantity	Image	Name	Price
		MHE1330 - Heavy Duty Steerable Load Skate - 3 Tonne	Sold Out
		MHE1335 - Heavy Duty Steerable Load Skate - 6 Tonne	Sold Out
		MHE1340 - Heavy Duty Steerable Load Skate - 12 Tonne	Sold Out

Code	Detail	Load Capacity	Base Dimensions (LxWxH)	Pad Dimension (LxW)	Roller (Dia)	Roller Width	Unit Weight
MHE1330	Steerable Load Skates - 3 Tonne	3000 Kg	230mm x 185mm x 105mm	180mm x 150mm	85mm	90mm	15 Kg
MHE1335	Steerable Load Skates - 6 Tonne	6000 Kg	550mm x 590mm x 120mm	400mm x 220mm	85mm	90mm	45 Kg
MHE1340	Steerable Load Skates - 12 Tonne	12,000 Kg	560mm x 585mm x 120mm	400mm x 220mm	80mm	85mm	66 kg
