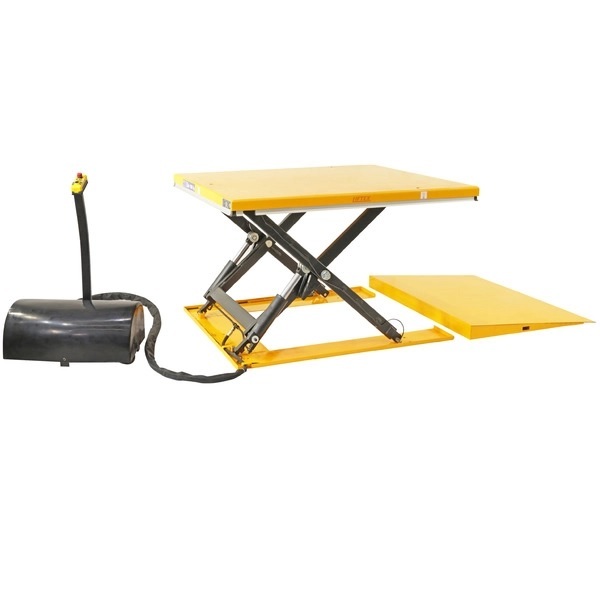

Low Profile Electric Pallet Lift Tables

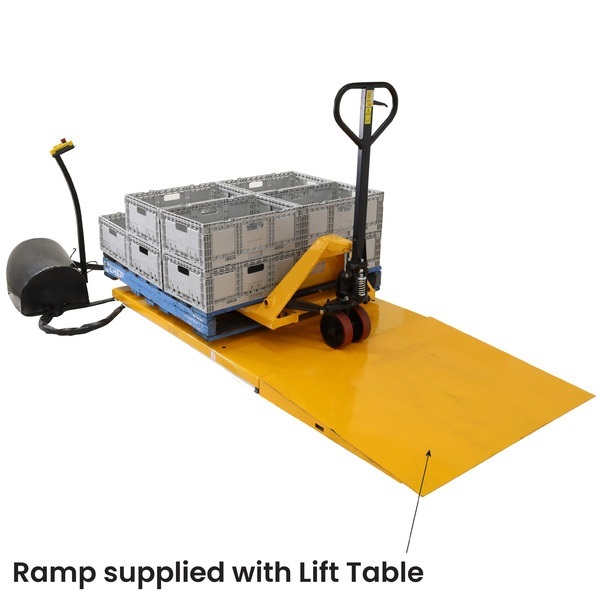

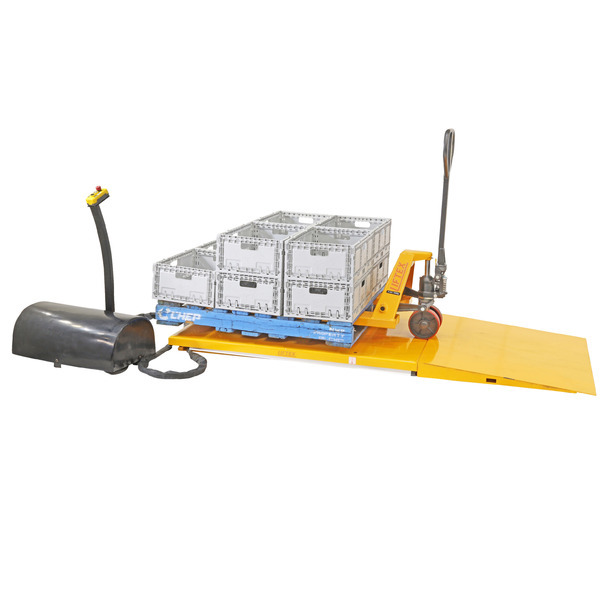

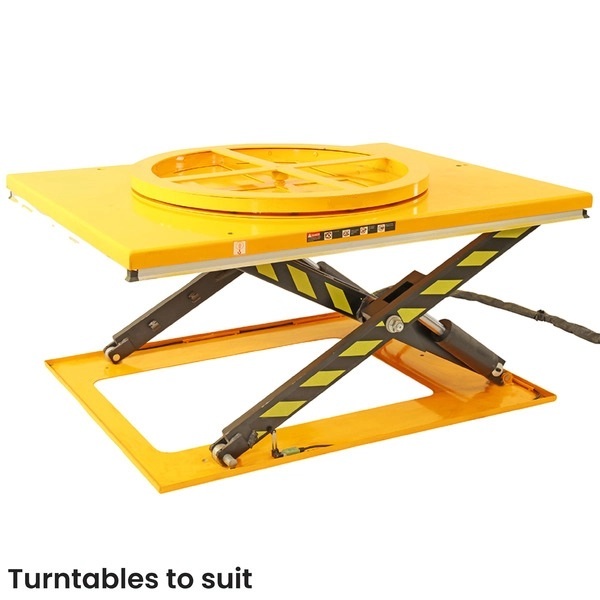

Supplied with entry ramp to allow pallet truck entry and optional rotator ring.
Tables are specially made for handling pallets, no need for a pit or load ramps.
Power Supply: 240v (3 phase 415v available if required)

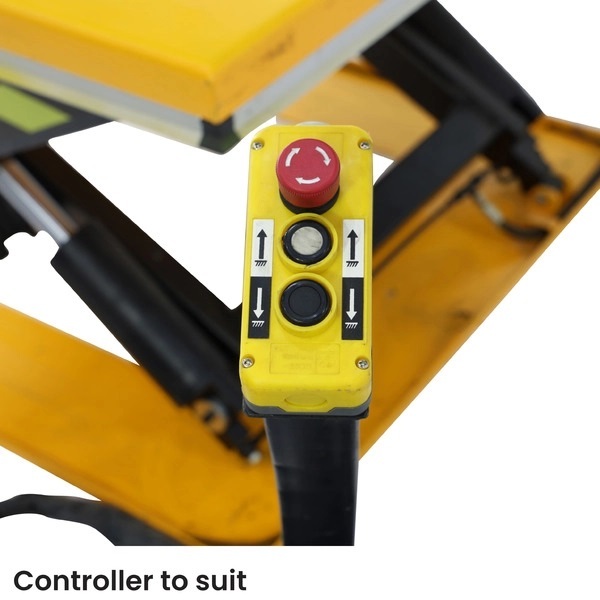

24v control box with UP and DOWN buttons and emergency stop.

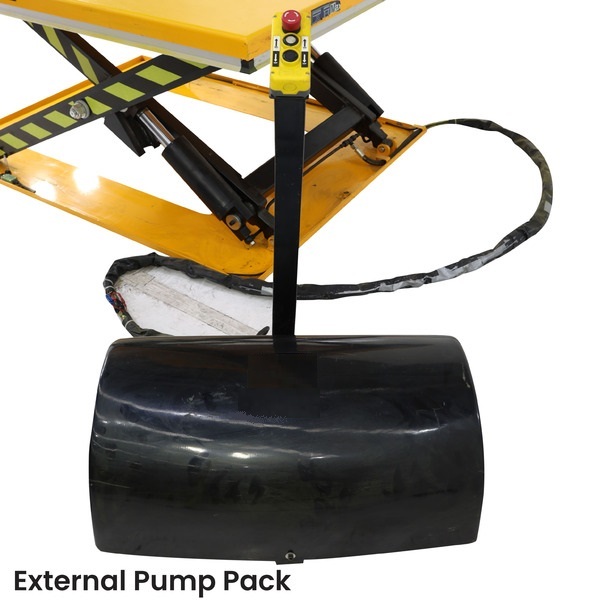

External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table
Oil-less bushings on pivot points
|Code||Detail||Load Capacity||Platform Size||Lifting Range||Lifting Time||Unit Weight|
|MHE2100||Low Profile Pallet Lift Table -1000kg||1000Kg||1140mm x 1420mm||85mm - 880mm||25 secs||357Kg|
|MHE2101||Low Profile Pallet Lift Table - 2000kg||2000Kg||1180mm x 1600mm||105mm - 880mm||25 secs||419Kg|
