Spring Loaded Rotating Pallet Tables

SKU: MH_2058

Designed to eliminate bending when loading or unloading palletised goods.

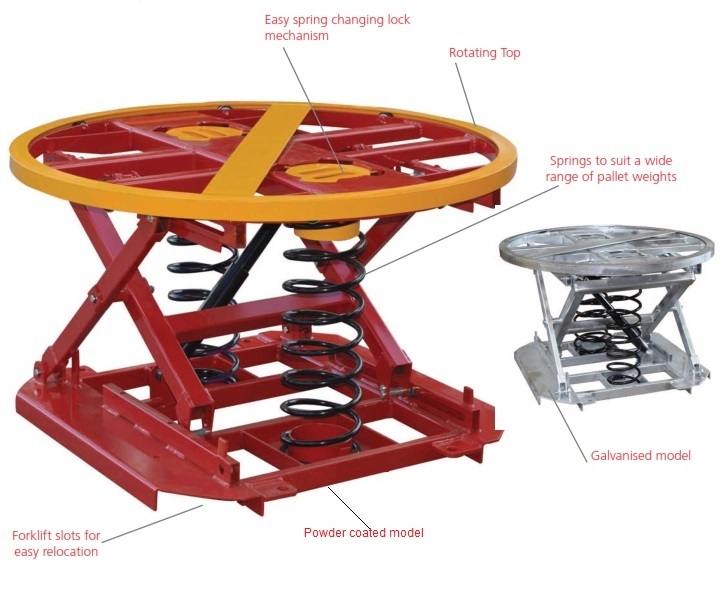

The construction of the pallet elevator is a scissor type action with varying springs which can be adjusted for different load capacities up to 2000 kg.

Turntable allows the operator to rotate the load with minimal stretching and reaching. It proves highly effective at reducing the incidences of repetitive strain and back injury.

No ground fixing required. Fork lift sleeves for easy relocation

Available in Powder Coated or Galvanised Finish

Supplied standard with PVC protection screen


Buying Options

Quantity Image Name Price
MHE2130 - Spring Lift Table - Powdercoated MHE2130 - Spring Lift Table - Powdercoated
Sold Out
MHE2131 - Spring Lift Table - Galvanised MHE2131 - Spring Lift Table - Galvanised
Sold Out
Code Detail Load Capacity Table Diameter Base Frame Dimensions (LxW) Lifting Range Unit Weight
MHE2130 Powder Coated 2000Kg 1110mm 935mm x 915mm 230mm - 705mm 160Kg
MHE2131 Galvanised 2000Kg 1110mm 935mm x 915mm 230mm x 705mm 160Kg











(MH_2058)

SKU MH_2058
