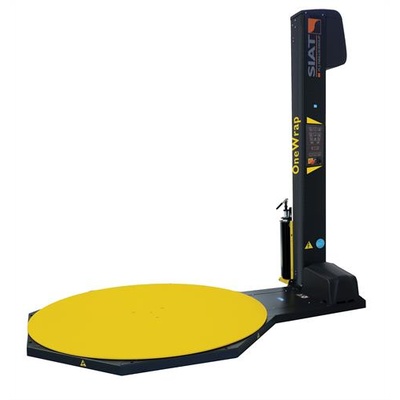

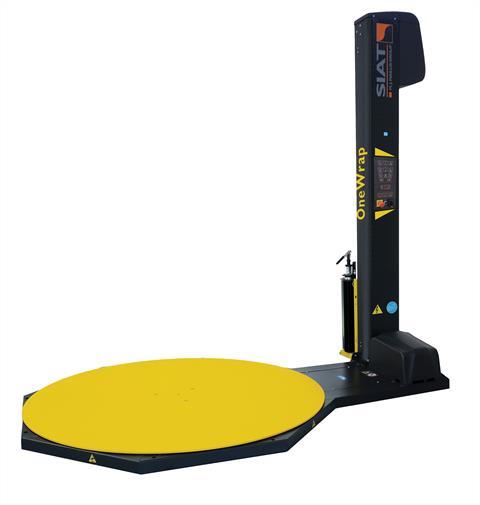

Semi-Auto Pallet Wrapping Machine - One Wrap

SKU: MSE1050M

The versatile solution for wrapping palletized loads with stretch film.

Can be equipped with mechanical/electromagnetic brake or powered pre-stretch carriages.

Sleek and modern design of the panel with easily understandable icons can be programmed with 10 different programs.

The machine has 5 different modes of operation:

Automatic UP ONLY

Automatic UP & DOWN

Automatic UP ONLY + PAUSE FOR TOP SHEET

Automatic UP & DOWN + PAUSE FOR TOP SHEET

Manual Mode.

OneWrap Semi-Automatic Pallet Stretch Wrapper

 Control Panel  Turntable Film Carriage Options
  • Safety emergency stop.
  • Turntable start and stop.
  • Programmable number of wraps top and bottom.
  • Multiple wrap programs can be stored.
  • Semi-auto function includes two automatic wrap cycles.
  • Top sheet application mode.
  • Manual mode.
  • Pallet height photocell.
  • Cycle can be stopped at any point and then continued, very useful for corner protection application.
  • IP65 control panel.
  • 75mm low profile.
  • 1650mm diameter.
  • Heavy duty chain and sprocket drive.
  • 2400Kg capacity weight.
  • Variable speed from 6 to 13 rpm.
  • Soft start turntable motor.
  • 240v single phase or 415v 3 phase.
  • Mechanical brake stretch system /Power stretch carriage (LP)
  • Easy load film system.
  • Max pallet height: 2200mm.
  • Auto pallet height sensor, adjustable for clear or black film.
  • Anti-crush switch on carriage.
  • Belt driven carriage.
  • Platform diameter options:  1800 mm
  • Ramp for hand pallet truck.
  • Extended column for pallets up to 2400 mm
  • Integrated weighing system.
  • Electric panel heater for environment temperatures from -5 °C to +5 °C
  • Stainless steel version.


























(MSE1050M)

SKU MSE1050M
Brand SIAT
Unit Of Measure ea
