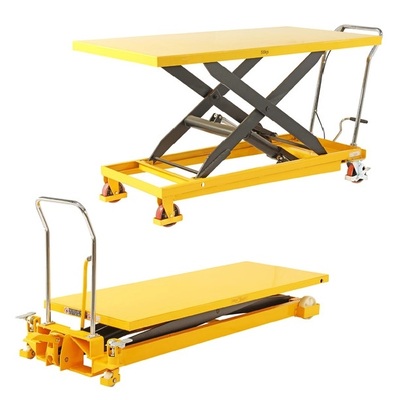

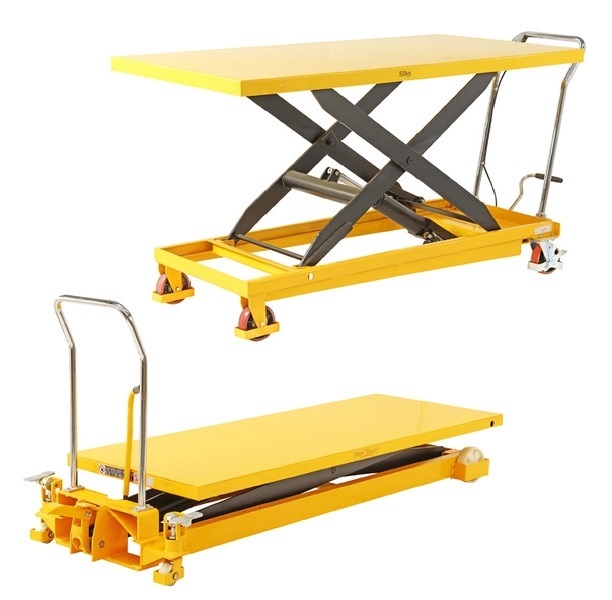

Extra Large Scissor Lift Trolleys
Extra large scissor lift trolleys are excellent for handling large bulky items. The table is elevated by a pump action foot pedal and smoothly lowered by a hand operated release trigger.
Foot operated hydraulic operation.
Lever release control
Safety overload bypass valve
Stepless rate of lowering regardless of load weight.
Durable powder-coated finish
MHE2020 Polyurethane Castors: 2 x fixed, 2 x swivel with brakes.
MHE2021 Nylon Castors: 2 x fixed, 2 x swivel with brakes.
Available in 500kg and 1000Kg load capacity.
|Code||Details||Platform Size (WxL)||Load Capacity||Lifting Range||Castor Diameter||Unit Weight|

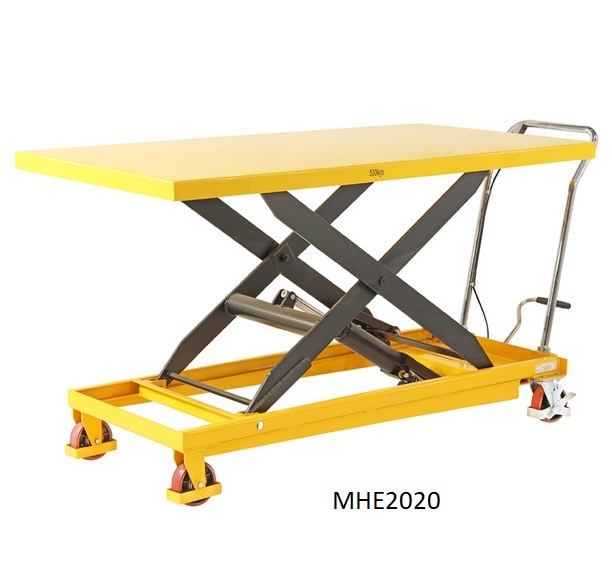

|MHE2020||Extra Large Scissor Lift Trolley - 500Kg||810mm x 1600mm||500KG||300mm - 935mm||125mm||154 Kg|

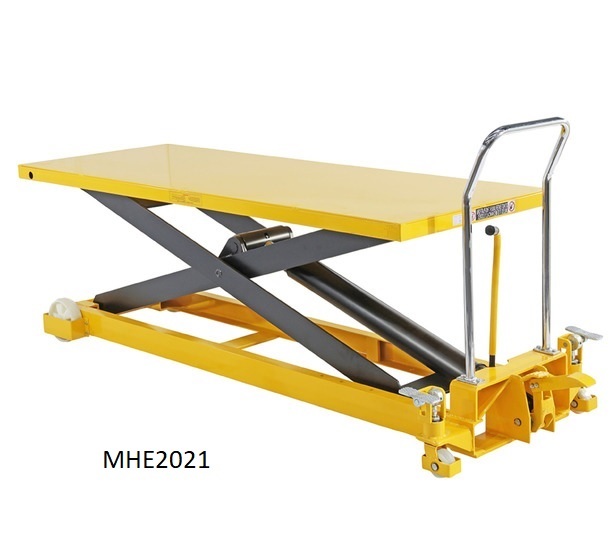

|MHE2021||Extra Large Scissor Lift Trolley - 1000Kg||750mm x 2035mm||1000KG||360mm - 1360mm||180mm||198 Kg|
