High Lift Scissor Lift Trolleys
Scissor lift trolleys help take the strain out of loading and unloading items from raised levels. The table is elevated by a pump action foot pedal and smoothly lowered by a hand operated release trigger.
High lift units have a double scissor configuration.
Foot operated hydraulic operation
Lever release control
Safety overload bypass valve
Stepless rate of lowering regardless of load weight.
Durable powder-coated finish
Polyurethane Castors: 2 x fixed, 2 x swivel with brakes.
|Code||Details||Platform Size (WxL)||Load Capacity||Lifting Range||Castor Diameter||Unit Weight|

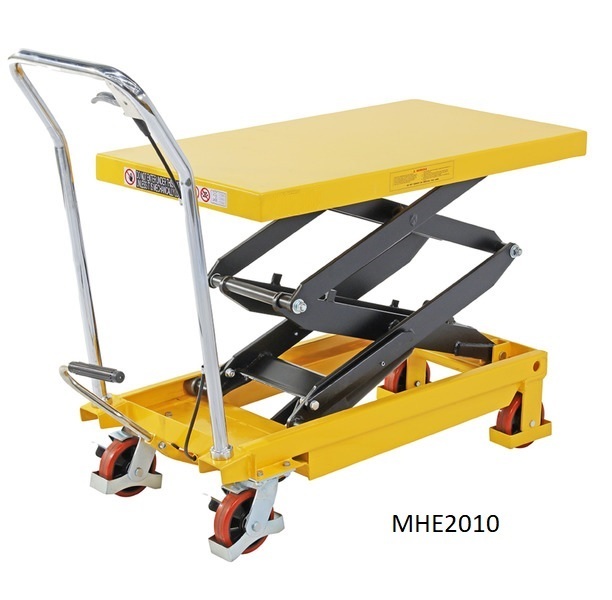

|MHE2010||Scissor Lift Trolley - 350Kg||500mm x 910mm||350KG||380mm - 1330mm||125mm||105 Kg|

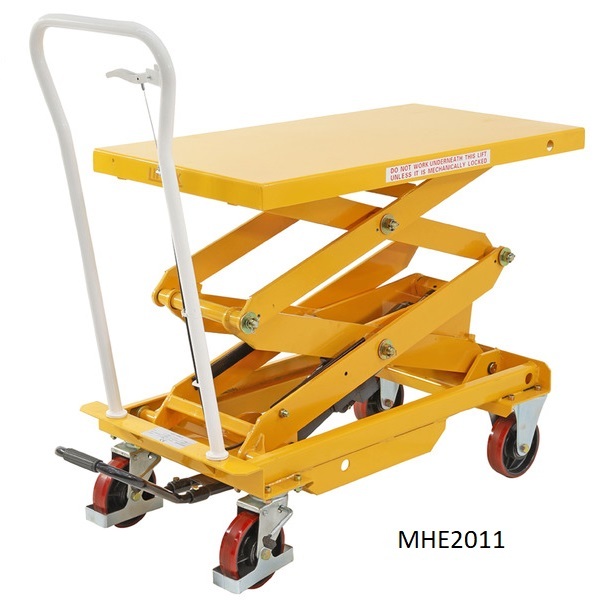

|MHE2011||Scissor Lift Trolley - 500Kg||520mm x 1010mm||500KG||440mm - 1615mm||150mm||168 Kg|

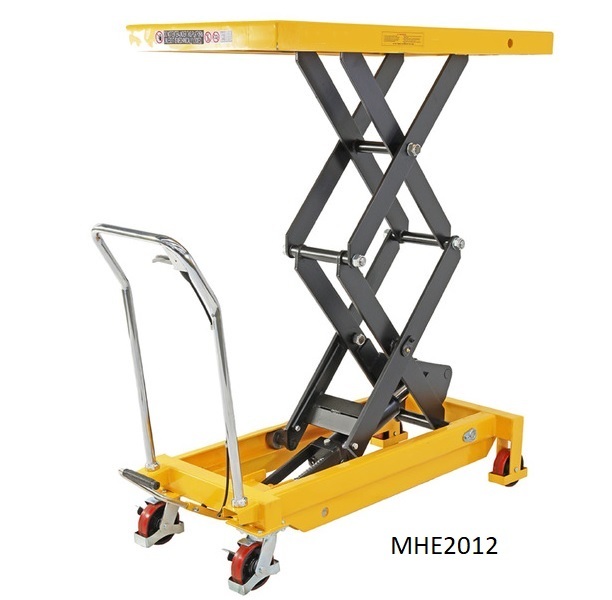

|MHE2012||Scissor Lift Trolley - 700Kg||610mm x 1220mm||700KG||445mm - 1510mm||125mm||195 Kg|
