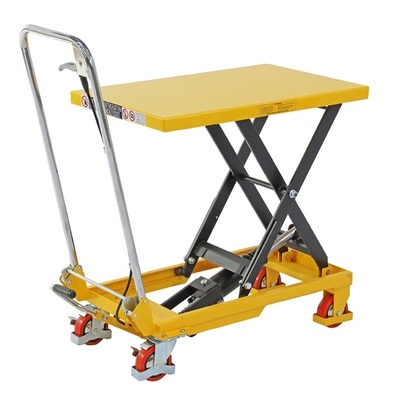

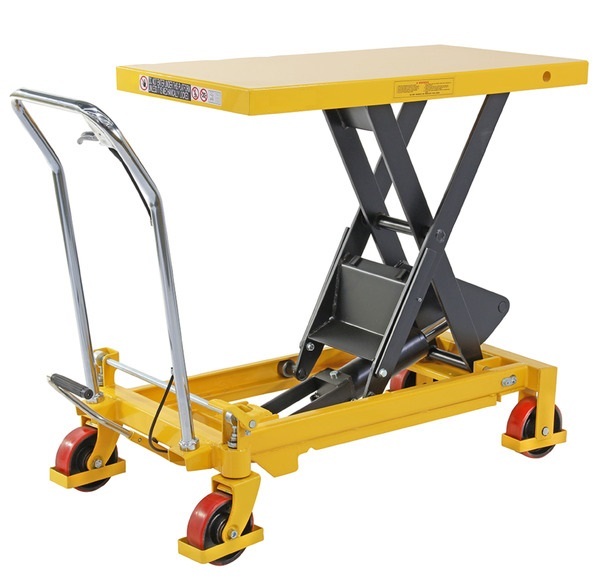

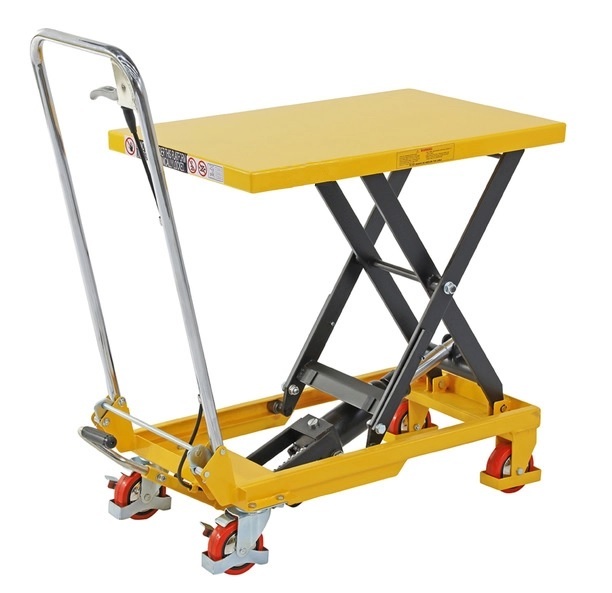

Standard Scissor Lift Trolleys
SKU: MH_2035
Scissor lift trolleys help take the strain out of loading and unloading items from raised levels. The table is elevated by a pump action foot pedal and smoothly lowered by a hand operated release trigger.
Foot operated hydraulic operation.
Lever release control.
Safety overload bypass valve
Polyurethane castors- 2 x fixed, 2 x swivel with brakes.
Durable powder-coated finish
Stepless rate of lowering regardless of load weight
The 150kg version has a foldable handle.
Code | Details | Platform Size (WxL) | Load Capacity | Lifting Range | Castor Diameter | Unit Weight |
---|---|---|---|---|---|---|
MHE2000 | Scissor Lift Trolley - 150Kg | 450mm x 700mm | 150KG | 225mm - 730mm | 100mm | 46 Kg |
MHE2001 | Scissor Lift Trolley - 300Kg | 500mm x 850mm | 300KG | 340mm - 900mm | 125mm | 77 Kg |
MHE2002 | Scissor Lift Trolley - 500Kg | 500mm x 850mm | 500KG | 340mm - 850mm | 125mm | 81 Kg |
MHE2003 | Scissor Lift Trolley - 750Kg | 510mm x 1000mm | 750KG | 435mm - 1000mm | 150mm | 175 Kg |
(MH_2035)
SKU | MH_2035 |
