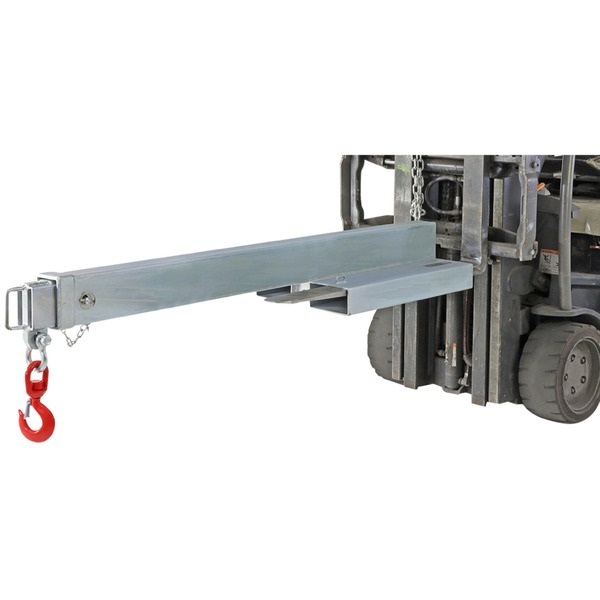

4.5 Tonne Fixed Long Jib

SKU: MHE2421

Long fixed jib is designed as an affordable general purpose jib which is ideal for confined spaces with a 3.5 metre reach when fully extended.

6 Jib positions.

Jib Length Contracted: 2000mm. Extended: 3500mm

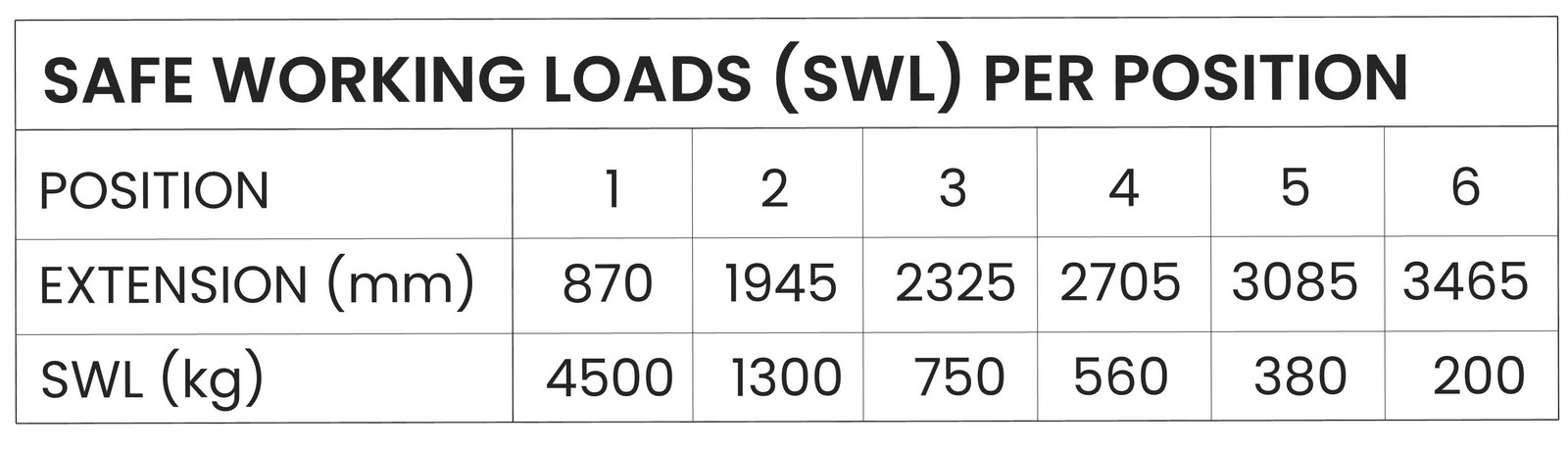

Safe Working Load: 4500kg (SWL load chart is shown on jib)

Fork Pocket Size: 185mm x 65mm

Fork Pocket Centres: 290mm

Overall Size (LxWxH): 2040mm x 490mm x 250mm

Unit Weight: 140kg

Finish: Zinc plated

NB: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.

In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.
