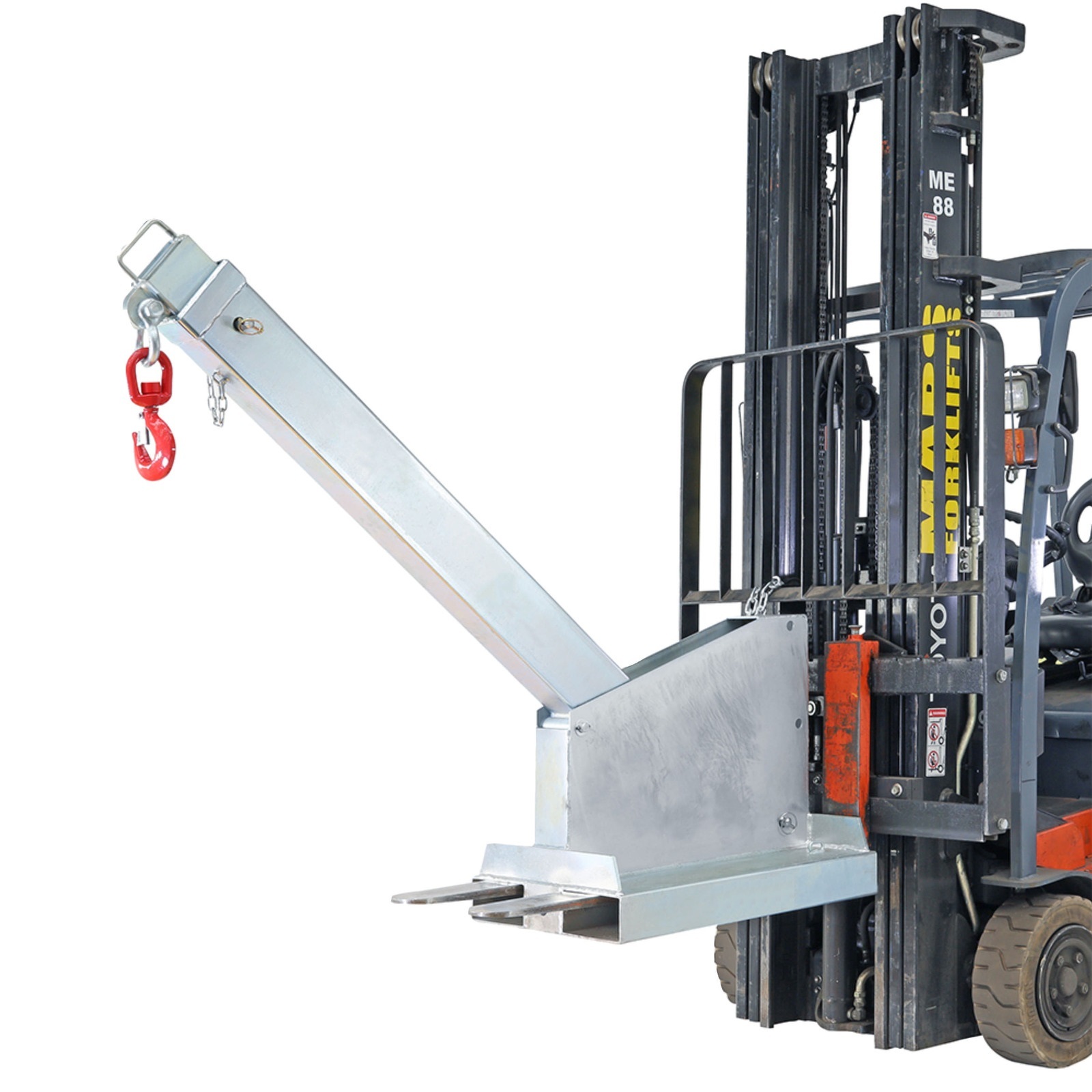

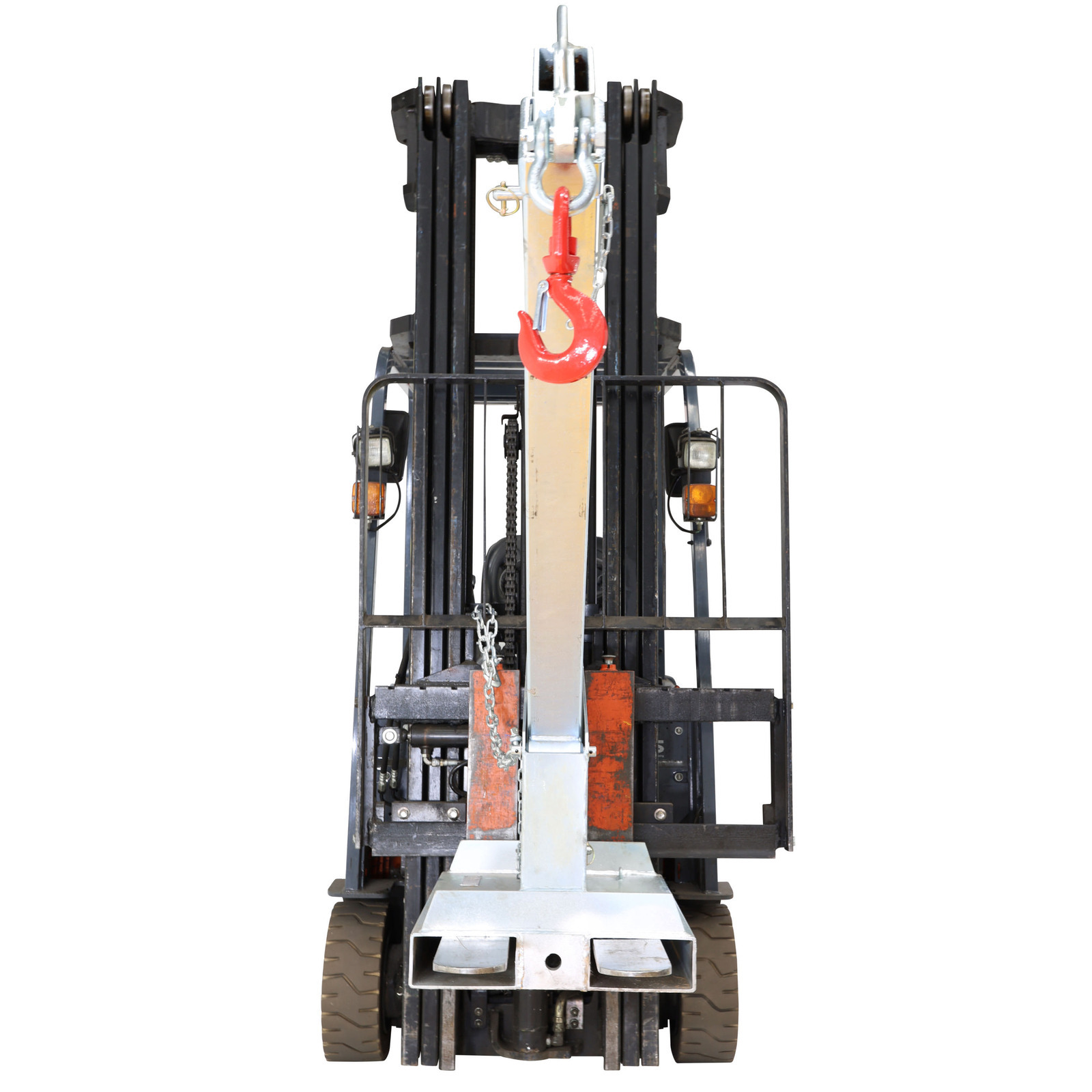

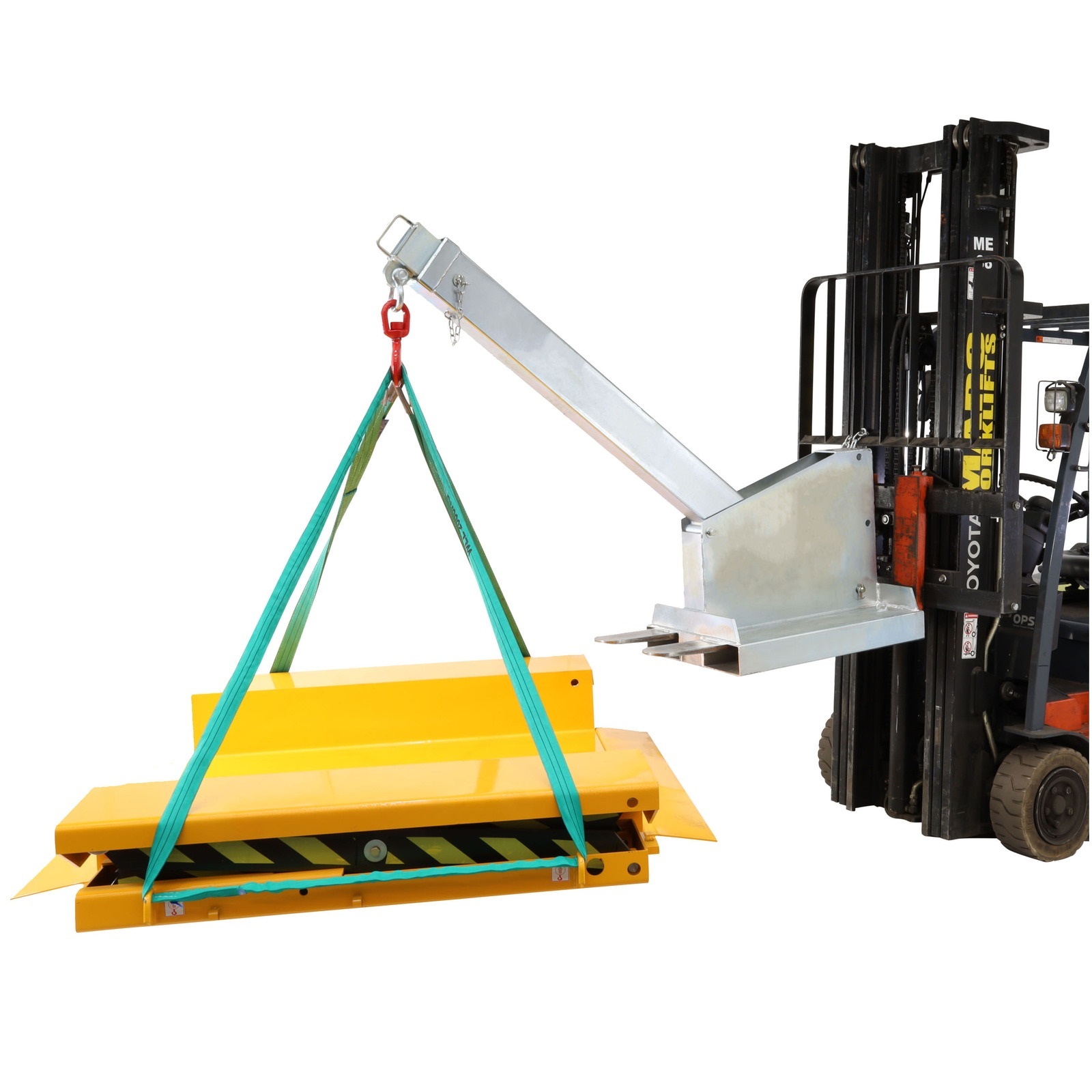

4.5 Tonne Long Tilting Jib
SKU: MHE2422
4500kg long tilting jib is the most versatile jib in our range and allows for additional height of up to 2.23 metres.
6 Jib positions.
Jib Length Contracted: 2100mm. Extended: 3530mm
Safe Working Load: 4500kg (SWL load chart is shown on jib)
Fork Pocket Size: 185mm x 65mm
Fork Pocket Centres: 322mm
Overall Size (LxWxH): 2100mm x 520mm x 650mm
Unit Weight: 190kg.
Finish: Zinc plated.
.JPG)
|

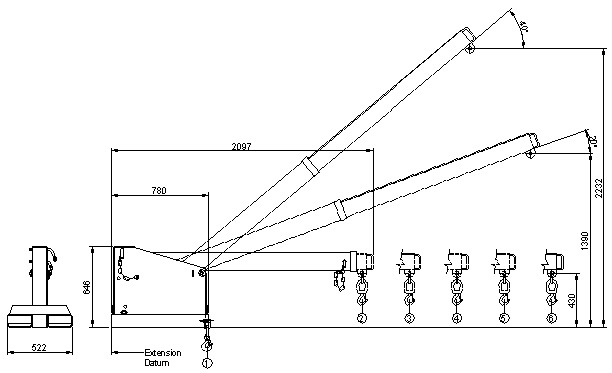

SAFE WORKING LOAD (SWL) PER POSITION
|
||||||
|---|---|---|---|---|---|---|
| Position | 1 | 2 | 3 | 4 | 5 | 6 |
| Extension | 770 | 2010 | 2390 | 2770 | 3150 | 3530 |
| SWL (kg) | 4500 | 1100 | 630 | 470 | 300 | 150 |
NB: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.
In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.
(MHE2422)
| SKU | MHE2422 |
| Unit Of Measure | ea |
