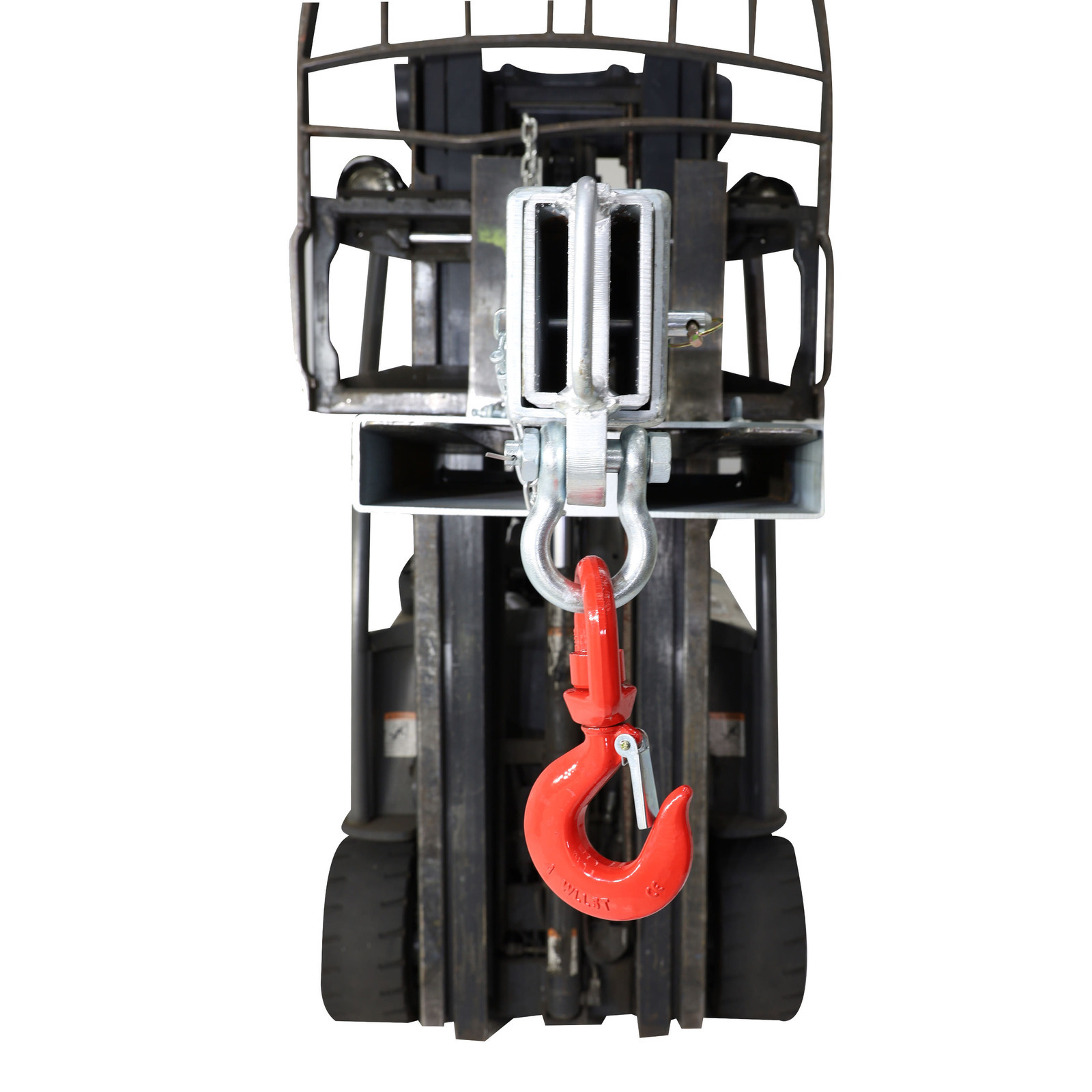

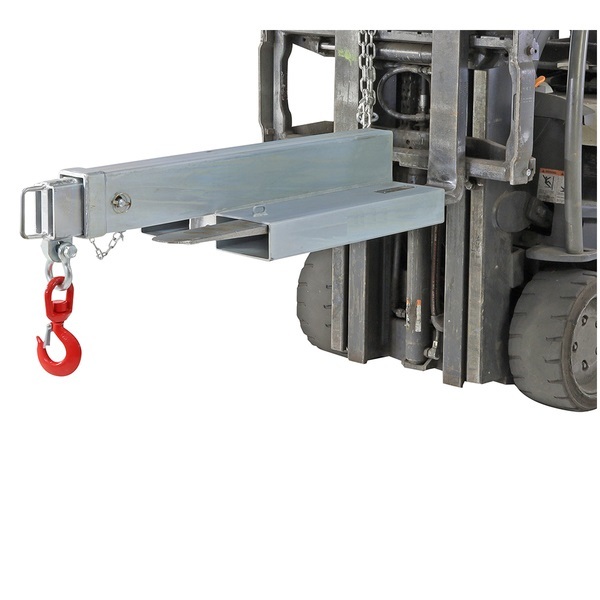

4.5 Tonne Fixed Short Jib
4500kg short fixed jib is designed as an affordable general purpose jib which is ideal for confined spaces, with a 1.9 metre reach when fully extended.
4 Jib positions.

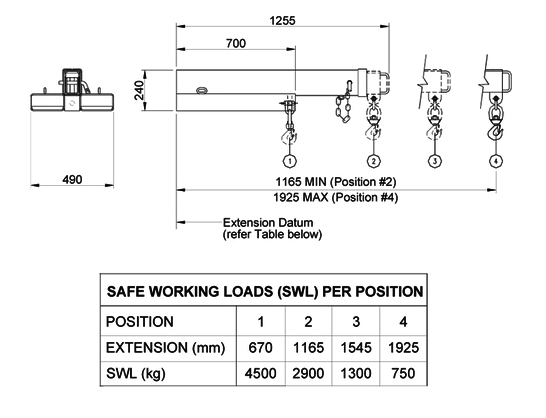

Jib Length Contracted: 1250mm. Extended: 1900mm
Safe Working Load: 4500kg (SWL load chart is shown on jib)
Fork Pocket Size: 185mm x 65mm
Fork Pocket Centres: 290mm
Overall Size (LxWxH): 1270mm x 490mm x 250mm
Unit Weight: 95kg
Finish: Zinc plated
NB: The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.
In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.
