Manual Fork/Platform Trolley
SKU: MHE2255

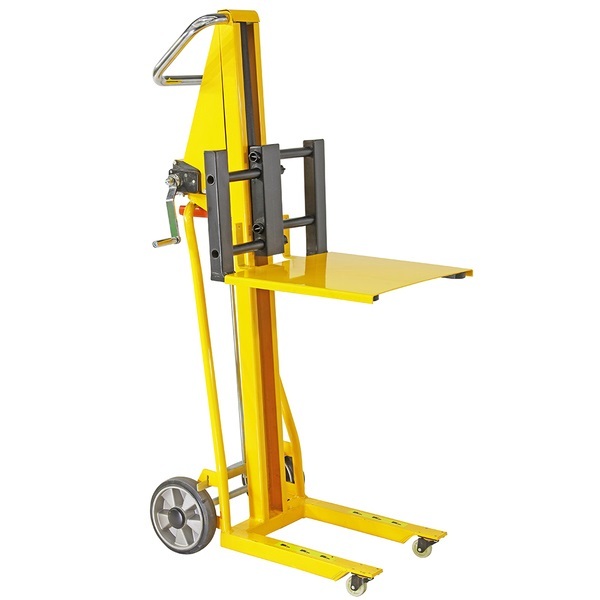

Robust, light weight steel construction platform lift trolley which is ideal for lifting heavy items to a workbench level.

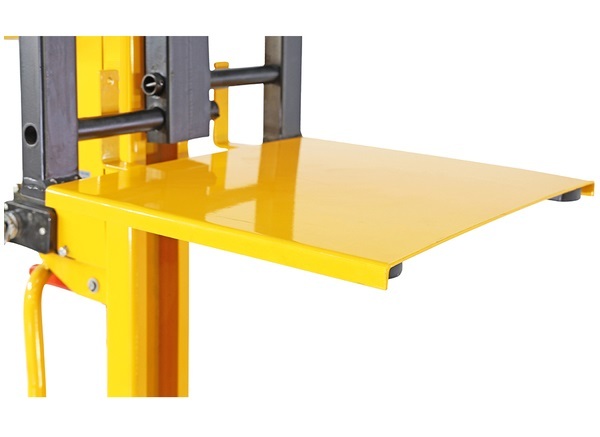

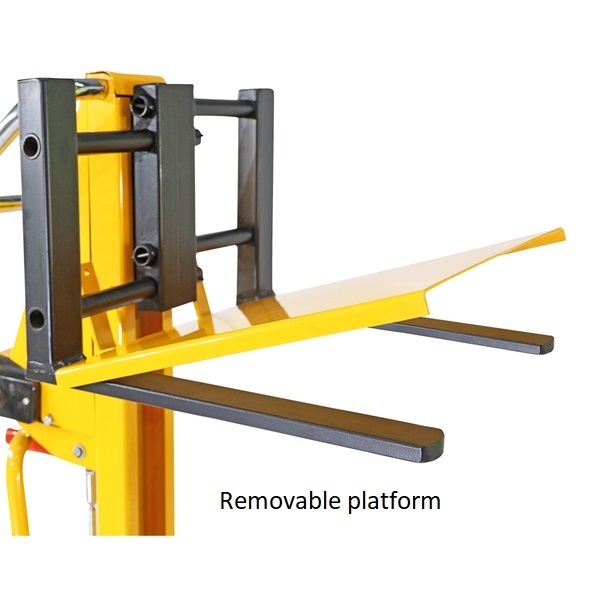

The platform is removable and has 2 fork tines under platform for lifting small skids.

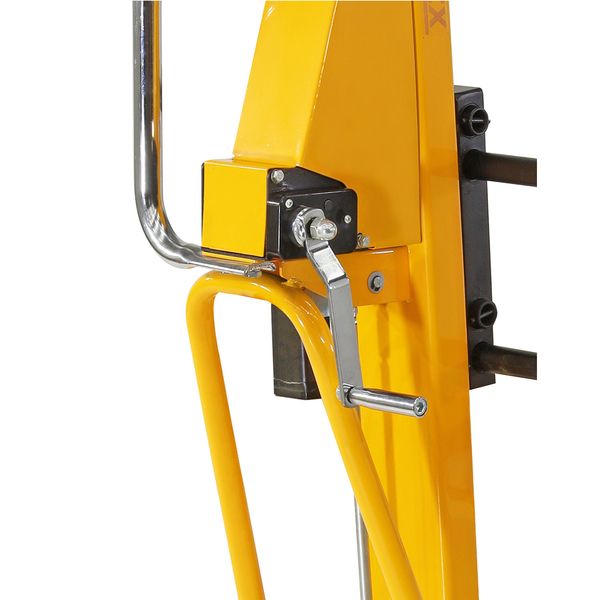

Cable winch lifting system with fully cable housing.
Rear Castors: 200mm.
Front Castors: 50mm.
Lifting Range: 95mm-1050mm.
Code | Details | Load Capacity | Overall Dimensions (LxWxH) | Platform Dimensions (WxL) | Fork Dimension (WxL) | Unit Weight |
---|---|---|---|---|---|---|
MHE2255 | Fork/Platform Stacker | 120Kg | 700mm x 460mm x 1370mm | 500mm x 420mm | 50mm x 420mm | 39Kg |
(MHE2255)
SKU | MHE2255 |
Unit Of Measure | ea |
